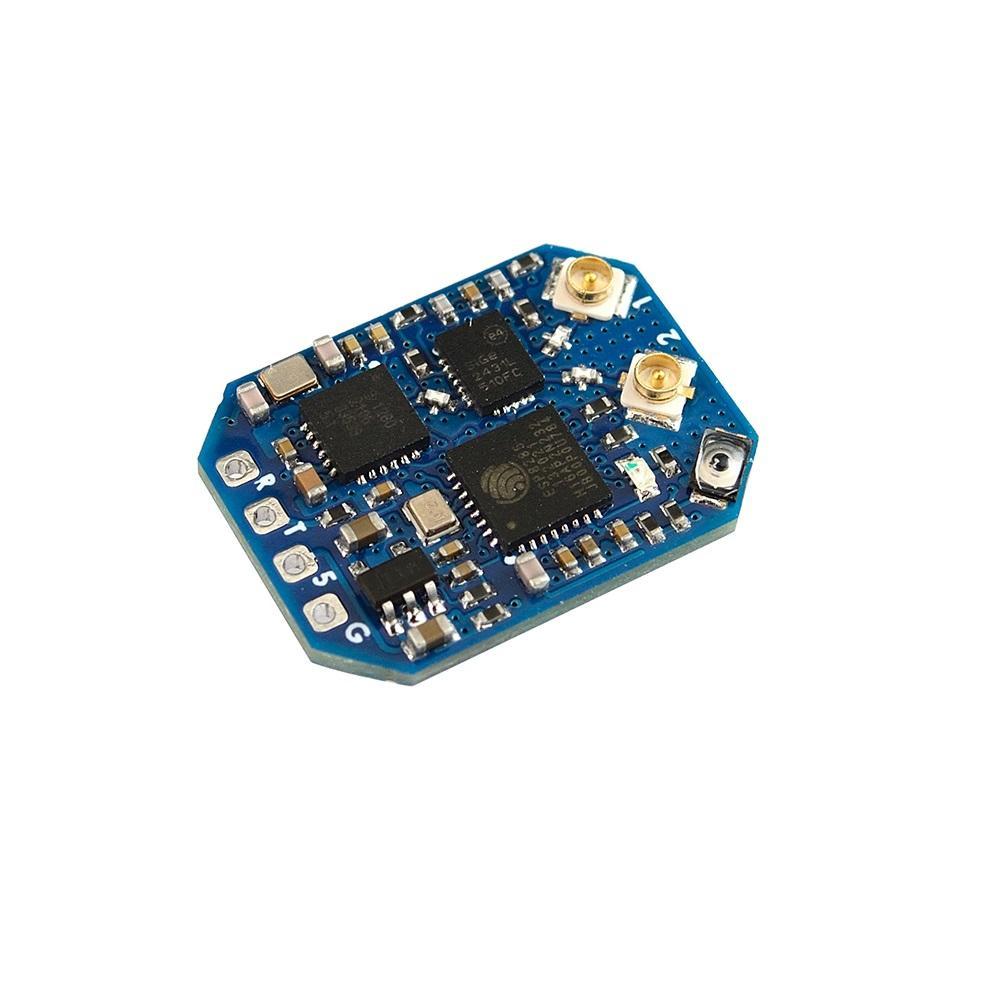

Matek ELRS 2.4GHz Diversity Receiver
Express LRS is quickly becoming one of the most popular radio protocols - with its performance and incredible range it's easy to see why.
This tiny receiver is the perfect pairing of Matek's quality hardware with the impressive ELRS firmware, with the added benefit of a full diversity system.
ELRS-R24-D Specifications
- ESP8285, SX1280/1281IMLTRT
- PA/LNA: SE2431L
- Antenna connector: IPEX MHF 1
- RF Frequency: 2.4GHz (2400~2480MHz)
- Telemetry power: 22.5dbm~23dbm
- SE2431L RX_gain: 12.5dB
- Diversity (antenna-switching), default ANT2
- Receiver protocol: CRSF
- Input voltage: 4~9V DC @ 5V pad
- Power dissipation: 40~45mA(before binding), 70~75mA(binding), 90~95mA(wifi mode)
- PCB size: 21mm x 15mm
- Weight: 3g w/ 2x antennas

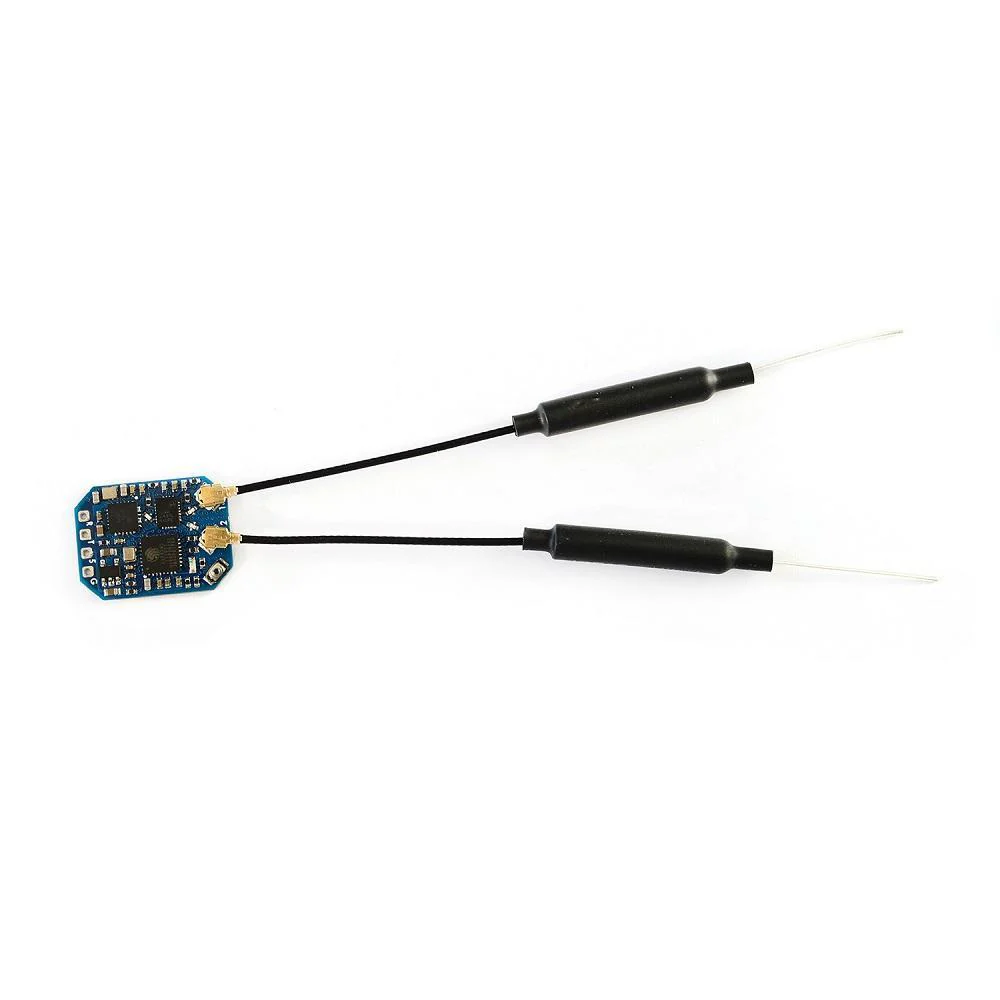

- Packing: 1x ELRS-R24-D, 2x IPEX MHF1 Antennas
