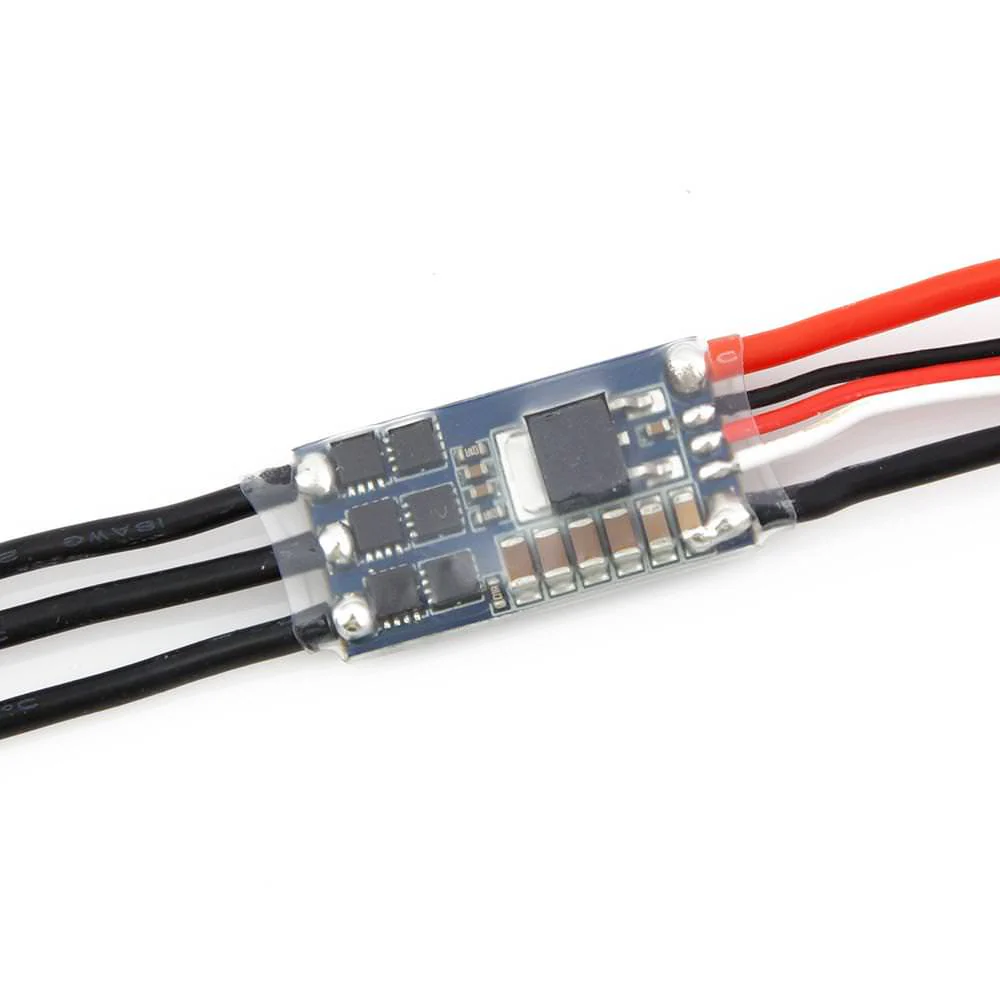

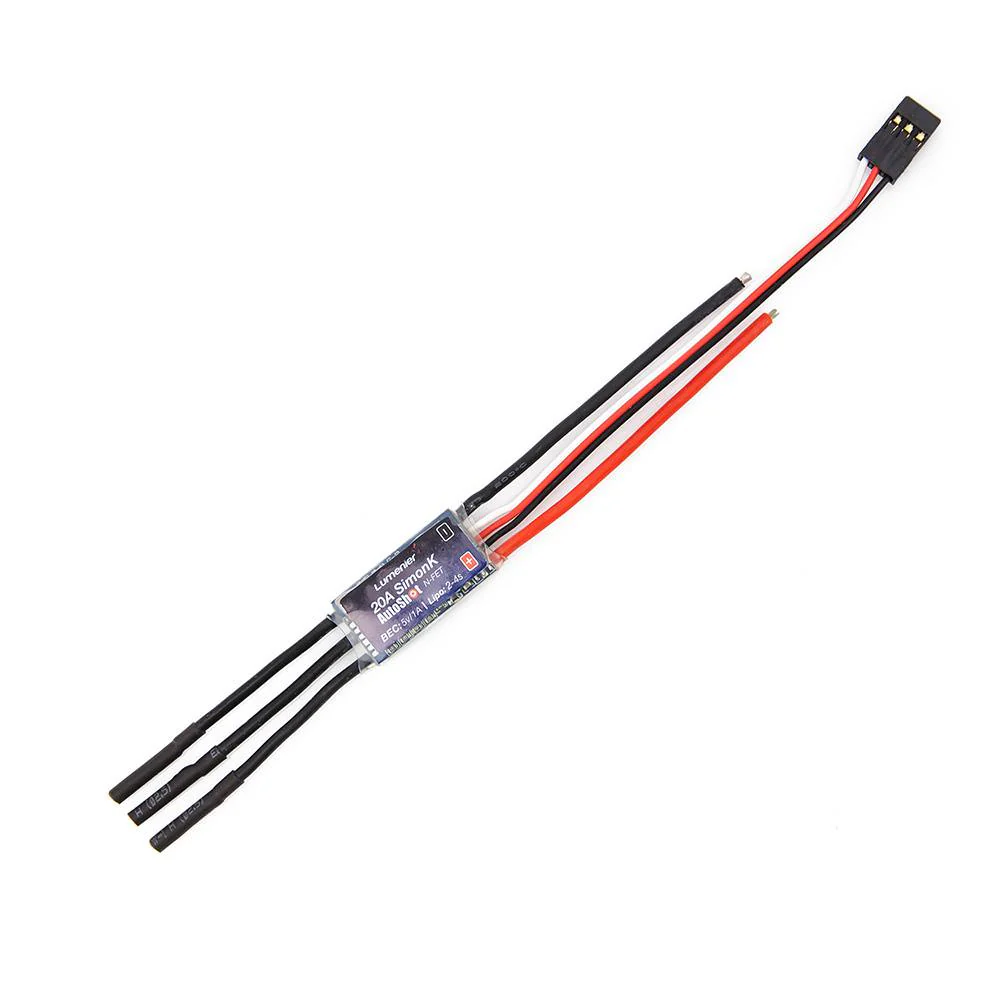

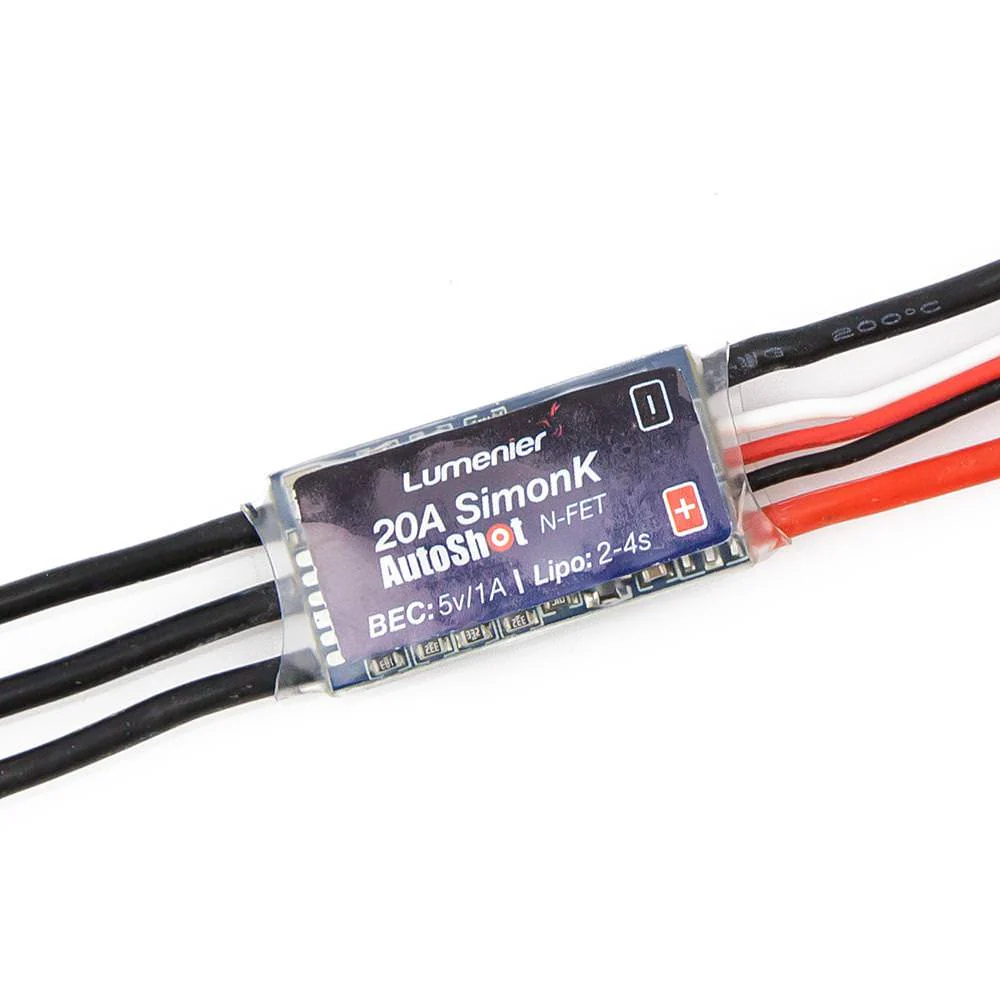

Lumenier Mini 20A ESC
The Lumenier Mini 20 amp ESC with customized SimonK firmware including OneShot auto-detect is the perfect ESC to use on mini FPV quads such as the QAV250. This ESC is small in size (27x14.5x6mm) and big on power, supporting 20A on 4s. The ESC comes pre-loaded with the newest firmware, which is compatible with new features like "OneShot" (no soldering required, it will auto-detect if OneShot is enabled) and Comp PWM (similar to KISS braking feature).
The Simonk AutoShot firmware is pre-calibrated with endpoints 1060µs - 1860µs. This corresponds to the default endpoints in both Baseflight and Cleanflight (the ESC is configured for Cleanflight/Baseflight by default). Therefore, calibration procedure is not necessary or recommended; calibrate at your own risk. Removal of the red wire in the signal cable is ok if you don't need 5v power out, but both the ground (black) and signal wire (white) need to be connected to the flight controller. Do not connect only the signal wire alone.
The Simonk AutoShot firmware is pre-calibrated with endpoints 1060µs - 1860µs. This corresponds to the default endpoints in both Baseflight and Cleanflight (the ESC is configured for Cleanflight/Baseflight by default). Therefore, calibration procedure is not necessary or recommended; calibrate at your own risk. Removal of the red wire in the signal cable is ok if you don't need 5v power out, but both the ground (black) and signal wire (white) need to be connected to the flight controller. Do not connect only the signal wire alone.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Lumenier Mini 20A ESC
Lumenier Mini 20A ESC
The Lumenier Mini 20 amp ESC with customized SimonK firmware including OneShot auto-detect is the perfect ESC to use on mini FPV quads such as the QAV250. This ESC is small in size (27x14.5x6mm) and big on power, supporting 20A on 4s. The ESC comes pre-loaded with the newest firmware, which is compatible with new features like "OneShot" (no soldering required, it will auto-detect if OneShot is enabled) and Comp PWM (similar to KISS braking feature).
The Simonk AutoShot firmware is pre-calibrated with endpoints 1060µs - 1860µs. This corresponds to the default endpoints in both Baseflight and Cleanflight (the ESC is configured for Cleanflight/Baseflight by default). Therefore, calibration procedure is not necessary or recommended; calibrate at your own risk. Removal of the red wire in the signal cable is ok if you don't need 5v power out, but both the ground (black) and signal wire (white) need to be connected to the flight controller. Do not connect only the signal wire alone.
The Simonk AutoShot firmware is pre-calibrated with endpoints 1060µs - 1860µs. This corresponds to the default endpoints in both Baseflight and Cleanflight (the ESC is configured for Cleanflight/Baseflight by default). Therefore, calibration procedure is not necessary or recommended; calibrate at your own risk. Removal of the red wire in the signal cable is ok if you don't need 5v power out, but both the ground (black) and signal wire (white) need to be connected to the flight controller. Do not connect only the signal wire alone.
$4.90
Original: $13.99
-65%Lumenier Mini 20A ESC—
$13.99
$4.90Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Lumenier Mini 20 amp ESC with customized SimonK firmware including OneShot auto-detect is the perfect ESC to use on mini FPV quads such as the QAV250. This ESC is small in size (27x14.5x6mm) and big on power, supporting 20A on 4s. The ESC comes pre-loaded with the newest firmware, which is compatible with new features like "OneShot" (no soldering required, it will auto-detect if OneShot is enabled) and Comp PWM (similar to KISS braking feature).
The Simonk AutoShot firmware is pre-calibrated with endpoints 1060µs - 1860µs. This corresponds to the default endpoints in both Baseflight and Cleanflight (the ESC is configured for Cleanflight/Baseflight by default). Therefore, calibration procedure is not necessary or recommended; calibrate at your own risk. Removal of the red wire in the signal cable is ok if you don't need 5v power out, but both the ground (black) and signal wire (white) need to be connected to the flight controller. Do not connect only the signal wire alone.
The Simonk AutoShot firmware is pre-calibrated with endpoints 1060µs - 1860µs. This corresponds to the default endpoints in both Baseflight and Cleanflight (the ESC is configured for Cleanflight/Baseflight by default). Therefore, calibration procedure is not necessary or recommended; calibrate at your own risk. Removal of the red wire in the signal cable is ok if you don't need 5v power out, but both the ground (black) and signal wire (white) need to be connected to the flight controller. Do not connect only the signal wire alone.
