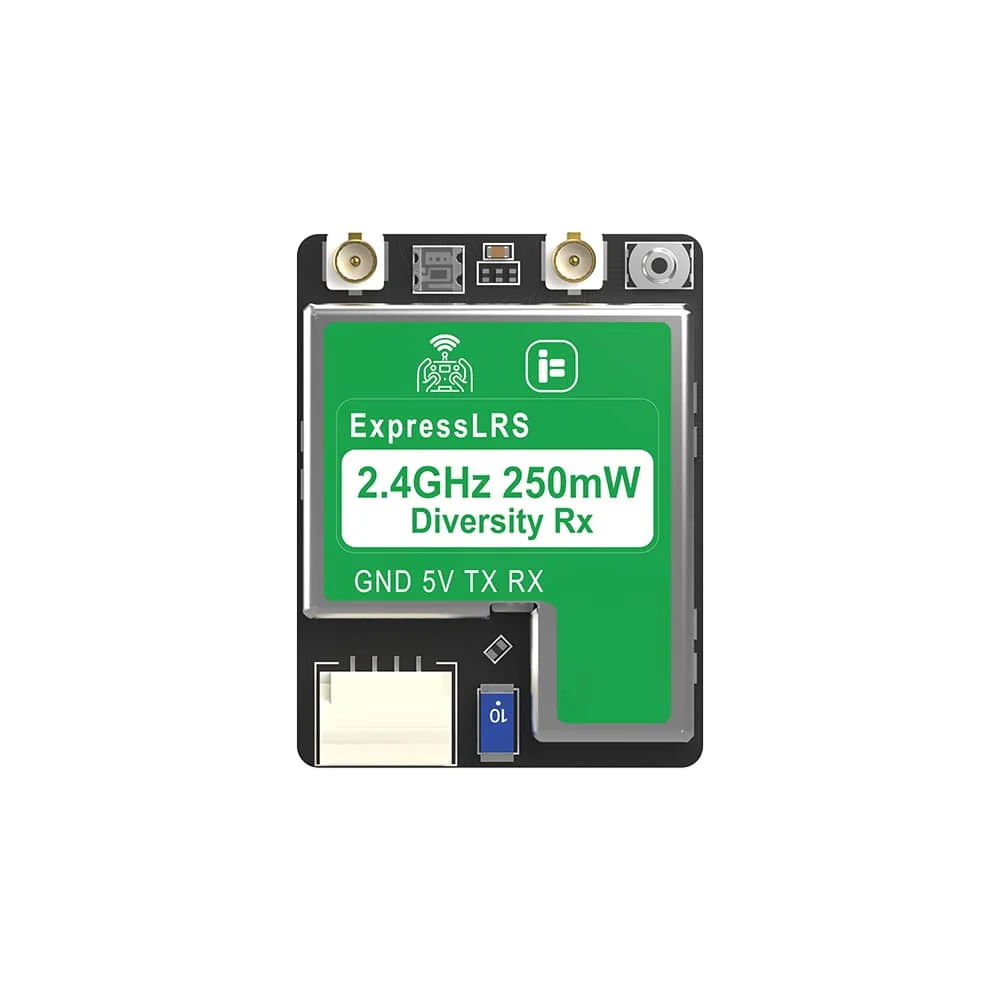

iFlight ELRS diversity receiver is a true dual-antenna diversity receiver developed in close cooperation with the ExpressLRS Team. ExpressLRS is known for its long-range operation, low latency, and high-power telemetry feedback capabilities.

The ELRS diversity receiver features well-placed dual antennas with shielding covers, enhancing its resistance to interference, widening signal reception, and ensuring a more stable connection compared to conventional single-antenna receiver systems.

It incorporates a TCXO temperature-compensated crystal oscillator to prevent frequency shifts caused by temperature variations. It significantly meets the reliability requirements for long-distance flights, aerial photography, or FPV freestyle maneuvers.



• Gemini mode and True Diversity mode are compatible, better reception effect
• Integrated shields can protect electronic components and enhance anti-interference capabilities.
• Newly upgraded Temperature Compensated Crystal Oscillator, lower packet loss, high-frequency stability
• Up to 250mW telemetry transmission power, resulting in stronger telemetry signals and significantly reducing instances of telemetry loss.
