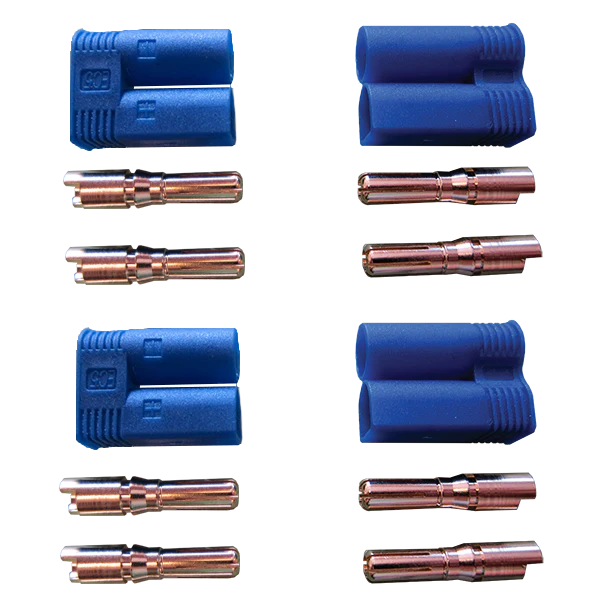

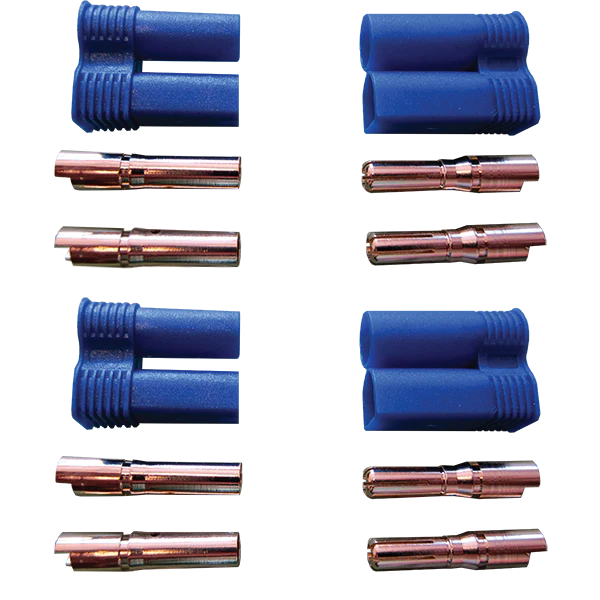

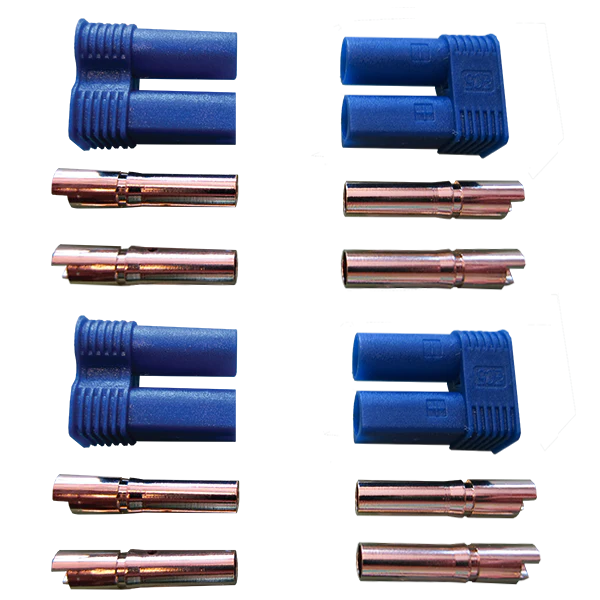

This enhanced new design of the rugged EC5 connector features an extended bullet with a larger solder cup for easier soldering and assembly. Ideal for applications requiring up to 120 amps of current, this package includes two pairs, 4 male or 4 female of these popular connectors.

Our connectors are constructed from the highest quality materials to ensure you get the best connection every time, whatever your application.

Assembly Instructions

• Battery Connection: Female bullets inside the small (male) housing - the squared off housing is Positive.
• ESC/Charger Connection: Male bullets inside the larger (female) housing - the squared off housing is Positive.
